Yog tias koj tab tom nrhiav ib lub tshuab uas ua haujlwm ntawm reels, ces koj xav tau ib lub decoiler lossis decoiler.
Kev nqis peev hauv cov cuab yeej peev yog ib qho kev ua haujlwm uas yuav tsum tau xav txog ntau yam thiab cov yam ntxwv. Koj puas xav tau lub tshuab uas ua tau raws li koj qhov kev xav tau tam sim no, lossis koj puas xav nqis peev rau cov peev txheej tiam tom ntej? Cov lus nug no feem ntau nug los ntawm cov tswv khw thaum yuav lub tshuab yob txoj kev. Txawm li cas los xij, kev tshawb fawb ntawm unwinders tau txais kev mloog me ntsis.

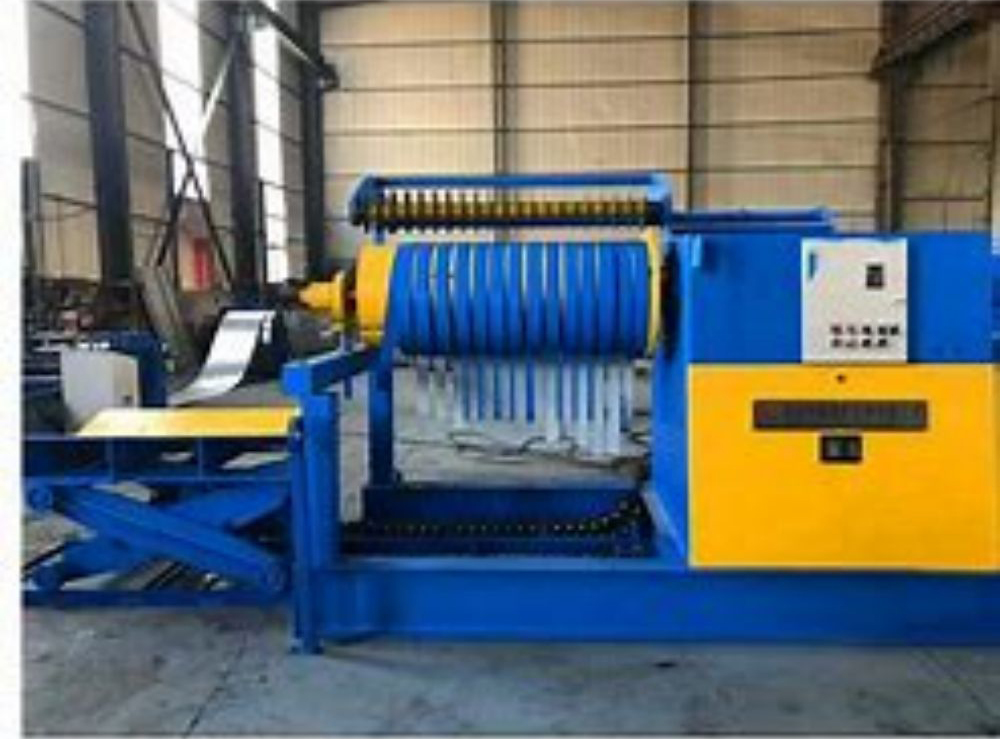

Yog tias koj tab tom nrhiav lub tshuab uas khiav ntawm cov reels, koj yuav xav tau lub decoiler (los yog decoiler raws li qee zaum hu ua). Yog tias koj muaj txoj kev sib sau, xuas nrig ntaus lossis slitting kab, koj xav tau ib lub yob unwinder rau cov txheej txheem hauv qab no; yeej tsis muaj lwm txoj hau kev los ua. Xyuas kom meej tias koj lub decoiler haum rau koj cov kev xav tau ntawm koj lub khw thiab qhov project yog qhov tseem ceeb los ua kom koj lub tshuab dov zoo, vim tias tsis muaj cov khoom siv, lub tshuab tsis tuaj yeem khiav.
Kev lag luam tau hloov pauv ntau hauv 30 xyoo dhau los, tab sis decoilers yeej ib txwm tsim los ua kom tau raws li qhov tshwj xeeb ntawm kev lag luam yob. Peb caug xyoo dhau los, tus qauv sab nraud txoj kab uas hla (OD) ntawm steel kauj yog 48 ntiv tes. Raws li cov tshuab tau dhau los ua ib tus neeg thiab cov haujlwm tau hu rau kev xaiv sib txawv, cov coils tau hloov kho rau 60 "thiab tom qab ntawd mus rau 72". Cov neeg tsim khoom niaj hnub no qee zaum siv sab nraud (OD) saum 84 ntiv tes. muaj. coil. Yog li ntawd, lub unwinder yuav tsum tau kho kom haum raws li kev hloov sab nraud txoj kab uas hla ntawm yob.
Decoilers tau dav siv hauv kev lag luam profileing. Niaj hnub no lub yob txoj kev tshuab muaj ntau yam nta thiab muaj peev xwm tshaj lawv cov predecessors. Piv txwv li, 30 xyoo dhau los yob txoj kev tshuab tau khiav ntawm 50 ko taw ib feeb (FPM). Tam sim no lawv khiav ntawm qhov nrawm mus txog 500 FPM. Qhov kev hloov pauv no hauv kev tsim cov khoom siv yob txoj kev kuj ua rau cov khoom tsim tau thiab cov txheej txheem yooj yim ntawm kev xaiv rau lub decoiler. Nws tsis txaus los xaiv ib tus qauv decoiler, koj yuav tsum xaiv qhov yog. Muaj ntau ntau yam thiab cov yam ntxwv los xav txog txhawm rau ua kom tau raws li qhov xav tau ntawm koj lub khw.
Decoiler manufacturers muaj ntau txoj kev xaiv los txhim kho cov txheej txheem profile. Niaj hnub no cov decoilers pib ntawm 1,000 phaus. Ntau tshaj 60,000 phaus. Thaum xaiv lub decoiler, xav txog cov yam ntxwv hauv qab no:
Koj kuj yuav tsum xav txog hom phiaj xwm koj yuav ua thiab cov ntaub ntawv koj yuav ua haujlwm nrog.
Nws tag nrho yog nyob ntawm seb qhov twg koj xav siv ntawm koj lub tshuab dov, suav nrog seb cov coils puas tau pleev xim ua ntej, galvanized lossis stainless hlau. Tag nrho cov yam ntxwv no txiav txim siab qhov twg unwinder nta koj xav tau.

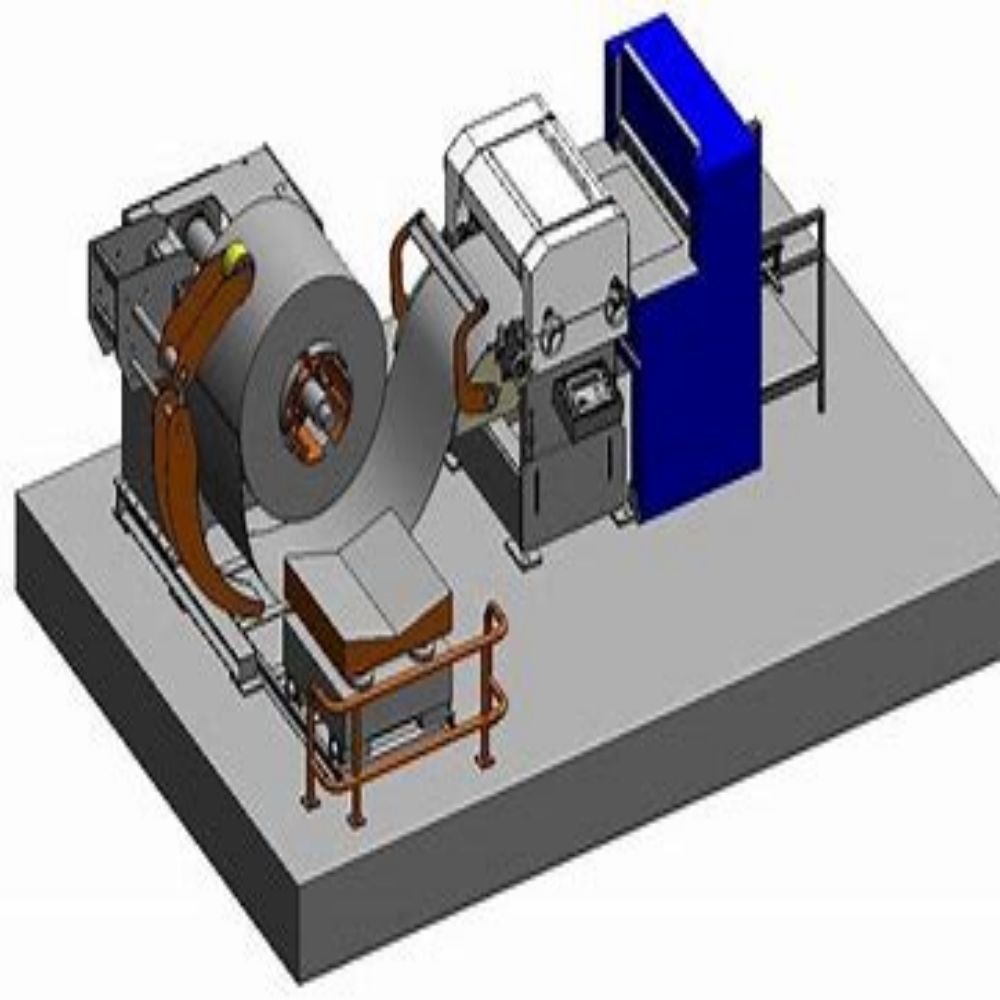

Piv txwv li, tus qauv decoilers yog ib sab, tab sis muaj ob-sided decoiler tuaj yeem txo lub sijhawm tos thaum tuav cov khoom. Nrog ob lub mandrels, tus neeg teb xov tooj tuaj yeem thauj cov yob thib ob rau hauv lub tshuab, npaj ua tiav thaum xav tau. Qhov no yog tshwj xeeb tshaj yog muaj txiaj ntsig nyob rau hauv cov xwm txheej uas tus neeg teb xov tooj yuav tsum tau hloov cov spools nquag.
Cov neeg tsim khoom feem ntau tsis paub txog qhov muaj txiaj ntsig zoo npaum li cas tuaj yeem ua kom txog thaum lawv paub tias, nyob ntawm qhov loj ntawm yob, lawv tuaj yeem ua rau rau rau yim lossis ntau qhov hloov pauv hauv ib hnub. Ntev npaum li lub yob thib ob tau npaj thiab tos ntawm lub tshuab, tsis tas yuav siv lub forklift lossis crane los thauj cov yob tom qab siv thawj yob. Uncoilers ua lub luag haujlwm tseem ceeb hauv qhov chaw ua haujlwm ntws, tshwj xeeb tshaj yog nyob rau hauv kev ua haujlwm siab uas cov tshuab tuaj yeem tsim cov khoom hauv yim teev ua haujlwm.
Thaum nqis peev rau hauv decoiler, nws yog ib qho tseem ceeb kom nkag siab txog koj qhov kev ua tau zoo thiab kev muaj peev xwm tam sim no. Txawm li cas los xij, nws tseem ceeb heev uas yuav tsum tau xav txog kev siv lub tshuab yav tom ntej thiab ua tau rau yav tom ntej ntawm lub tshuab yob txoj kev. Tag nrho cov xwm txheej no yuav tsum tau txiav txim siab kom tsim nyog thiab tuaj yeem pab tau tiag tiag hauv kev xaiv txoj cai unwinder.

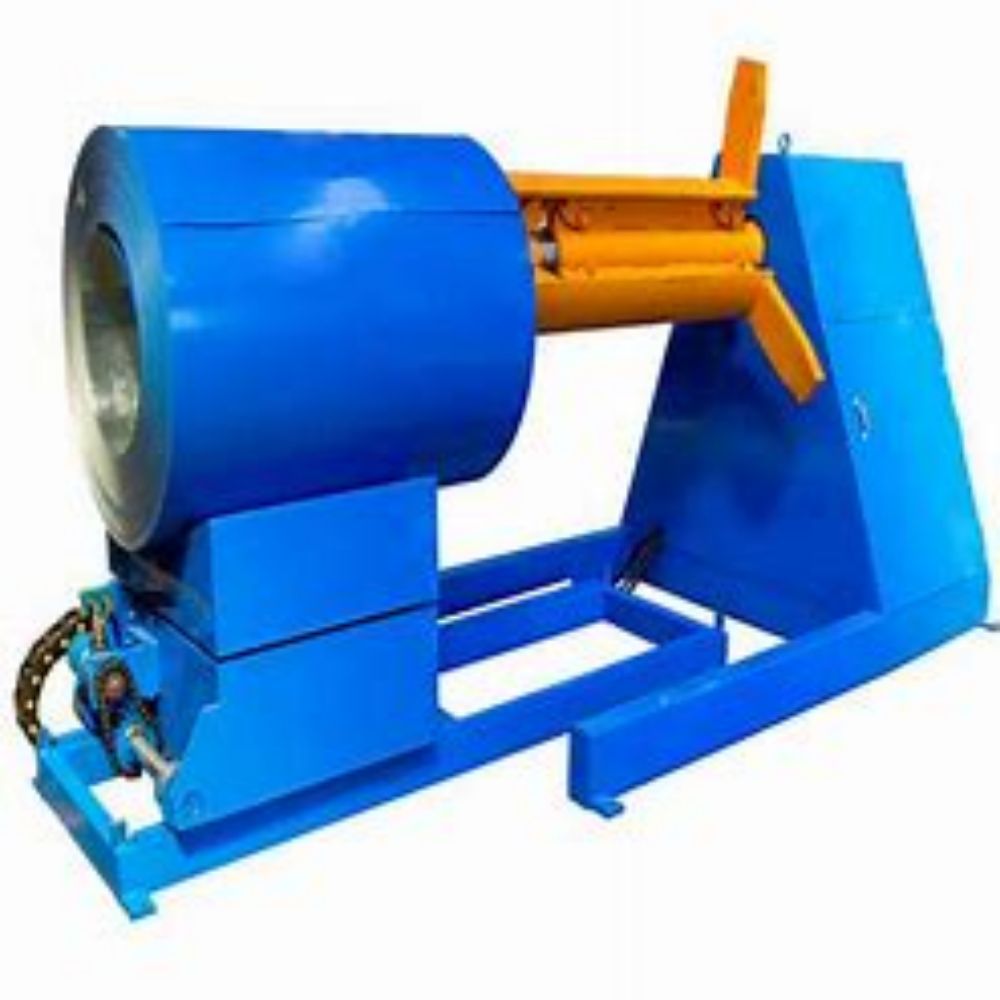

Lub bale trolley ua rau nws yooj yim rau thauj cov bale mus rau lub mandrel yam tsis tau tos lub crane lossis forklift ua nws.
Xaiv lub mandrel loj dua txhais tau tias koj tuaj yeem khiav cov yob me me ntawm lub tshuab. Yog li, yog tias koj xaiv 24 ntiv tes. Arbor, koj tuaj yeem khiav qee yam me me. Yog tias koj xav hloov mus rau 36 ntiv tes. kev xaiv, ces koj yuav tsum tau nqis peev nyob rau hauv ib tug loj decoiler. Nws yog ib qho tseem ceeb kom nrhiav tau lub cib fim yav tom ntej.
Raws li cov yob tau loj dua thiab hnyav dua, lub khw hauv pem teb kev nyab xeeb tau dhau los ua qhov kev txhawj xeeb loj. Uncoilers muaj qhov loj, nrawm nrawm, yog li cov neeg ua haujlwm yuav tsum tau kawm txog kev ua haujlwm ntawm lub tshuab thiab nws cov chaw raug.
Niaj hnub no, yob qhov hnyav sib txawv ntawm 33 mus rau 250 kg ib square inch, thiab unwinders tau hloov kho kom tau raws li qhov yuav tsum tau muaj lub zog ntawm yob. Heaver spools ua rau muaj kev txhawj xeeb txog kev nyab xeeb ntau dua, tshwj xeeb tshaj yog thaum txiav daim kab xev. Lub tshuab tau nruab nrog lub siab caj npab thiab tsis muaj cov chais kom paub tseeb tias cov yob tsis muaj mob tsuas yog thaum xav tau. Lub tshuab kuj tseem tuaj yeem suav nrog cov khoom noj khoom haus thiab cov chaw ua haujlwm sab nraud los pab nruab nrab ntawm bale rau cov txheej txheem tom ntej.
Nthuav lub mandrel los ntawm txhais tes yuav nyuaj dua li qhov spool ua hnyav dua. Raws li cov khw txav cov neeg khiav dej num tawm ntawm lub uncoiler mus rau lwm qhov chaw ntawm lub khw rau kev nyab xeeb, hydraulic expansion mandrels thiab slewing peev feem ntau yuav tsum tau. Shock absorbers tuaj yeem muab ntxiv kom txo qis kev sib hloov ntawm lub unwinder.

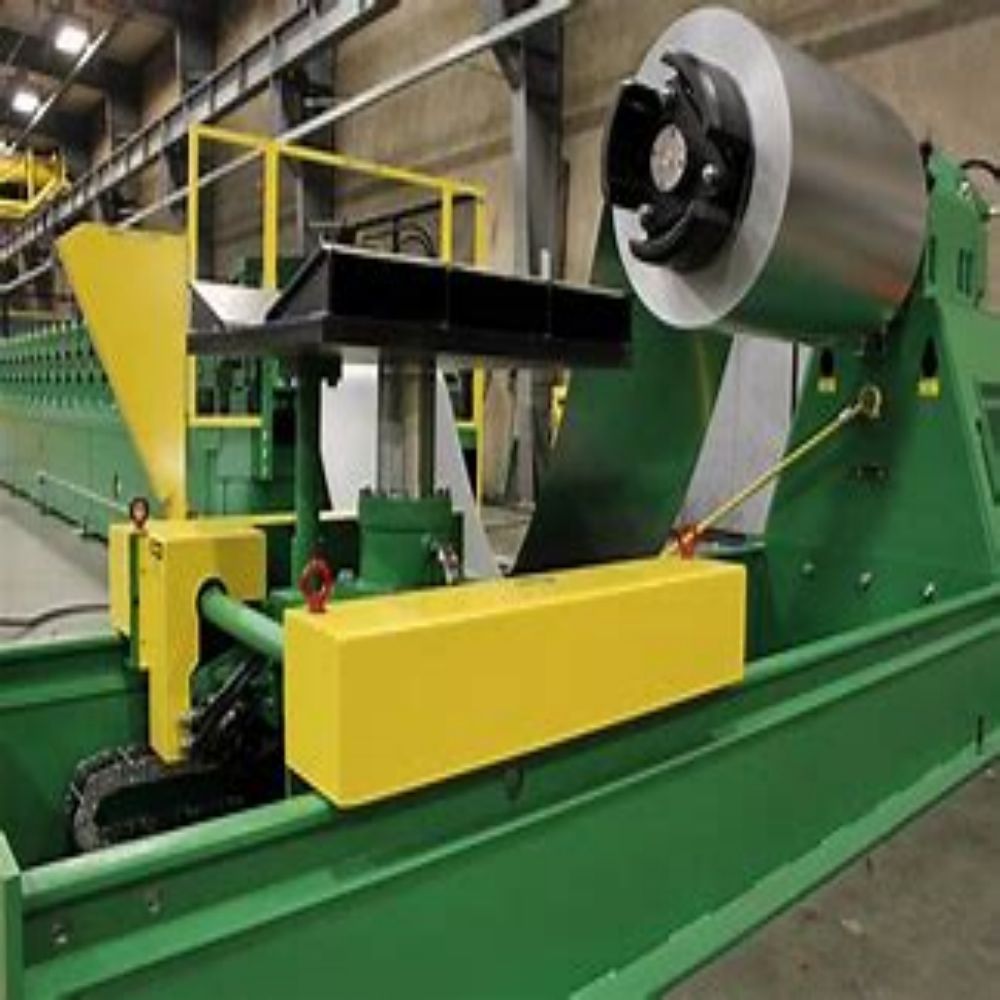

Nyob ntawm tus txheej txheem thiab ceev, yuav tsum muaj kev ruaj ntseg ntxiv. Cov yam ntxwv no muaj xws li sab nraud-fab yob tuav los tiv thaiv yob los ntawm ntog tawm, yob sab nraud txoj kab uas hla thiab kev sib hloov ceev tswj systems, thiab tshwj xeeb braking systems xws li dej-txias brakes rau ntau lawm kab khiav hauj lwm ntawm high speeds. Qhov no yog qhov tseem ceeb heev los xyuas kom meej tias lub unwinder nres thaum cov txheej txheem ntws ntws nres.
Yog tias koj ua haujlwm nrog ntau cov ntaub ntawv xim, muaj tsib-mandrel unwinders tshwj xeeb, uas txhais tau tias koj tuaj yeem siv tsib lub yob sib txawv ntawm lub tshuab tib lub sijhawm. Cov neeg ua haujlwm tuaj yeem tsim ntau pua qhov chaw ntawm ib qho xim thiab tom qab ntawd hloov mus rau lwm yam xim yam tsis tau nkim sijhawm tshem tawm cov yob thiab hloov.

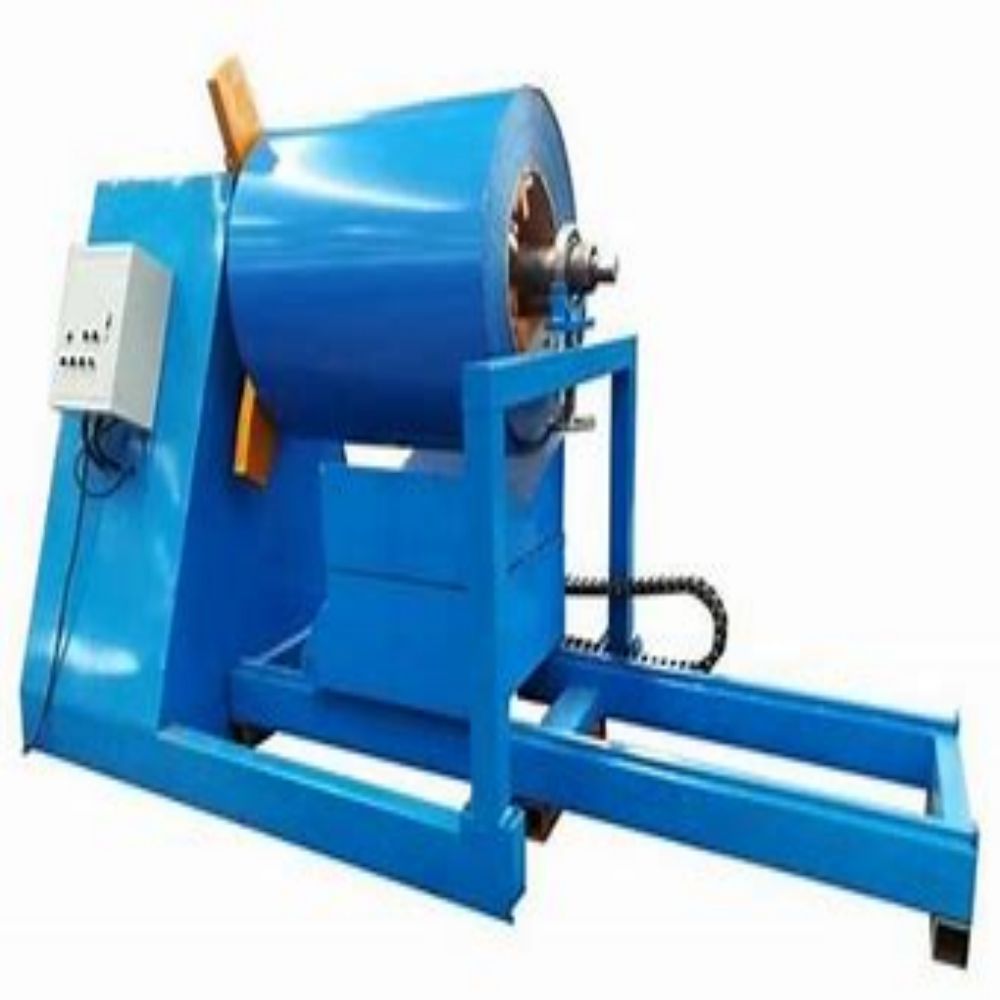

Lwm qhov tshwj xeeb yog yob trolley, uas pab txhawb kev thauj khoom ntawm yob mus rau mandrels. Qhov no ua kom tus neeg teb xov tooj tsis tas yuav tos lub crane lossis forklift thauj khoom.
Nws yog ib qho tseem ceeb uas yuav tau siv sij hawm los tshawb txog ntau yam kev xaiv muaj rau koj lub unwinder. Nrog adjustable arbors kom haum raws li qhov sib txawv inner inch spools thiab ntau spool backplate qhov ntau thiab tsawg, muaj ntau yam los xav txog txhawm rau nrhiav qhov haum. Ib daim ntawv teev npe tam sim no thiab cov peev txheej tshwj xeeb yuav pab koj txheeb xyuas cov yam ntxwv koj xav tau.
Zoo li lwm lub tshuab, lub tshuab yob txoj kev tsuas yog muaj txiaj ntsig thaum nws khiav. Xaiv lub decoiler txoj cai rau koj lub khw qhov kev xav tau tam sim no thiab yav tom ntej yuav pab koj lub decoiler khiav zoo dua thiab nyab xeeb.
Jaswinder Bhatti yog Tus Lwm Thawj Coj ntawm Kev Txhim Kho Daim Ntawv Thov ntawm Samco Machinery, 351 Passmore Ave., Toronto, Ontario. M1B 3H8, 416-285-0619, www.samco-machinery.com.
