Roll forming khoom tsum

Ntau tshaj 30+ Xyoo Manufacturing Experience

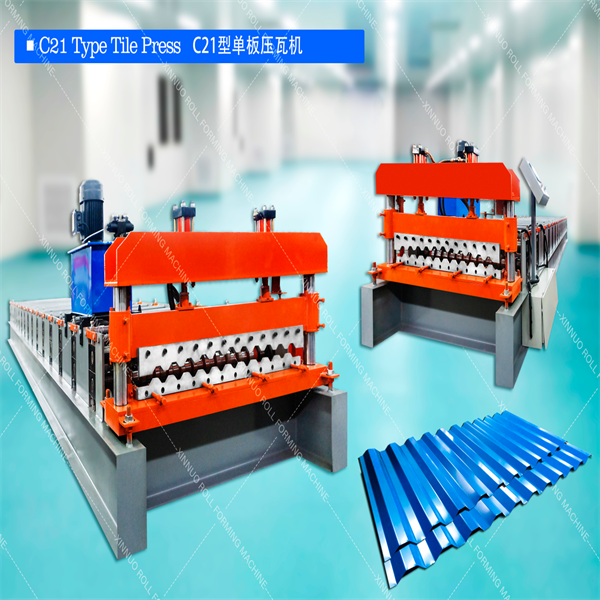

C21 hom pobzeb xovxwm Rooj vaj huam sib luag yob txoj kev tshuab

Lus piav qhia luv luv:


  • FOB Nqe:US $6500-52000/set
  • Min. Order Quantity:1set ib
  • Muaj peev xwm muab khoom:10sets ib hlis
  • :
  • Product Detail

    kev teeb tsa

    COMPANY PROFILE:

    Dab tsi yog hlau yob txoj kev?

    Khoom cim npe



    Ru vaj huam sib luag yob txoj kev tshuab





    Tsis muaj. Main parameter ntawm lub tshuab rau siv
    1 Haum rau kev ua haujlwm Xim hlau phaj
    2 Dav ntawm lub phaj 850m ua
    3 Thickness ntawm lub phaj 0.3-0.8 hli
    4 De-coiler Phau ntawv ib, tuaj yeem thauj khoom 5 tons raw khoom
    5 Rollers rau txoj kev 11 row
    6 Txoj kab uas hla ntawm cov menyuam 70 hli
    7 Rolling khoom Cov pa roj carbon steel 45 #
    8 Main lub cev muaj zog 4 kwv
    9 Productivity 8-12m / min
    10 Txiav txoj kev Hydraulic pwm txiav
    11 Cov khoom ntawm cov hniav txiav Cr12 mov
    12 Hydraulic txiav fais fab 3 kwv
    13 Ua precision Hauv 1.00mm
    14 Tswj qhov system Delta PLC tswj
    15 Sab vaj huam sib luag ntawm lub tshuab 14mm ib
    16 Lub ntsiab qauv ntawm lub tshuab 300H hlau
    17 Qhov hnyav Txog 3.5T
    18 Qhov ntev Loj: 6.0 * 1.5 * 1.25m
    19 Qhov hluav taws xob 380V 3 theem
    20 Daim ntawv pov thawj CE/ISO/TUV
    Customized raws li cov neeg siv khoom xav tau

    lQLPDhtVaxx9GdzNA-bNBcawuNU62Ge6qxACXJ9pe8BJAA_1478_998

    lQLPDhtVaee8kdnNA-TNBduwCa2j9TVXLAACXJ1vXoAhAA_1499_996



    lQLPDhtVaeEuILHNA-XNBduwjN_acwQNW0ICXJ1k9cCBAA_1499_997
    Ntim & Shipping:

    tswj lub thawv yog ntim nrog ntoo ntim.

    Tus me nyuam nthuav dav: txog 45 hnub.



    Ntim Cov Lus Qhia: Lub tshuab tseem ceeb yog liab qab hauv lub thawv, lub computer

    Peb Cov Kev Pabcuam

    1: Cov engineers muaj los nruab thiab kuaj cov tshuab rau koj txawv teb chaws hauv koj lub Hoobkas.

    2: Warranty: 12 lub hlis.

    3: Kev cob qhia txuj ci dawb mus ib txhis.


    Cov ntaub ntawv tuam txhab

    .jpg ib





    FAQ:



  • Yav dhau los:
  • Tom ntej:

  • Cov duab 20220406094904 Cov duab 202204060949041 Cov duab 2022040609490423.png ib

    ♦ COMPANY PROFILE:

       Hebei Xinnuo Roll Forming Machine Co., Ltd., tsis tsuas yog tsim ntau hom kev yob txoj kev tshuab, tab sis kuj tsim cov ntse tsis siv neeg yob txoj kab ntau lawm, C & Z puab purline tshuab, txoj kev loj guardrail yob txoj kev tshuab kab, sandwich vaj huam sib luag ntau lawm kab, decking kev tsim cov cav tov, lub teeb keel tshuab, shutter slat door forming machines, downpipe machines, gutter machine, etc.

    Qhov zoo ntawm Roll Forming Ib Qhov Hlau

    Muaj ntau qhov zoo ntawm kev siv yob txoj kev rau koj cov haujlwm:

    • Cov txheej txheem yob txoj kev tso cai rau kev ua haujlwm xws li xuas nrig ntaus, txiav, thiab vuam kom ua tiav hauv kab. Tus nqi ua haujlwm thiab lub sijhawm rau kev ua haujlwm thib ob raug txo lossis tshem tawm, txo cov nqi ib feem.
    • Roll form tooling tso cai rau kom muaj kev hloov pauv siab. Ib txheej txheej ntawm yob daim ntawv cov cuab yeej yuav ua rau yuav luag txhua qhov ntev ntawm tib ntu ntu. Ntau cov cuab yeej siv rau qhov sib txawv qhov ntev tsis tas yuav tsum tau ua.
    • Nws tuaj yeem muab kev tswj kom zoo dua li lwm cov txheej txheem hlau sib tw.
    • Repeatability yog nyob rau hauv tus txheej txheem, tso cai yooj yim los ua ke ntawm yob tsim qhov chaw rau hauv koj cov khoom tiav, thiab txo cov teeb meem vim "tus qauv" kam rau ua.
    • Roll forming feem ntau yog txheej txheem ceev dua.
    • Roll forming muab cov neeg siv khoom zoo tshaj qhov ua tiav. Qhov no ua rau yob txoj kev xaiv zoo tshaj plaws rau cov hniav stainless hlau qhov chaw los yog rau qhov chaw uas yuav tsum tau ua tiav xws li anodizing lossis hmoov txheej. Tsis tas li ntawd, kev ntxhib los mos los yog qauv tuaj yeem dov rau hauv qhov chaw thaum tsim.
    • Roll forming siv cov khoom siv tau zoo dua li lwm cov txheej txheem sib tw.
    • Roll tsim cov duab tuaj yeem tsim nrog cov phab ntsa nyias dua li cov txheej txheem sib tw

    Roll forming yog txheej txheem tas mus li uas hloov cov ntawv hlau mus rau hauv ib qho kev tsim qauv siv cov txheej txheem sib law liag ntawm cov rolls, txhua qhov ua rau tsuas yog hloov pauv hauv daim ntawv. Cov txiaj ntsig ntawm cov kev hloov me me hauv daim ntawv no yog qhov nyuaj profile.
